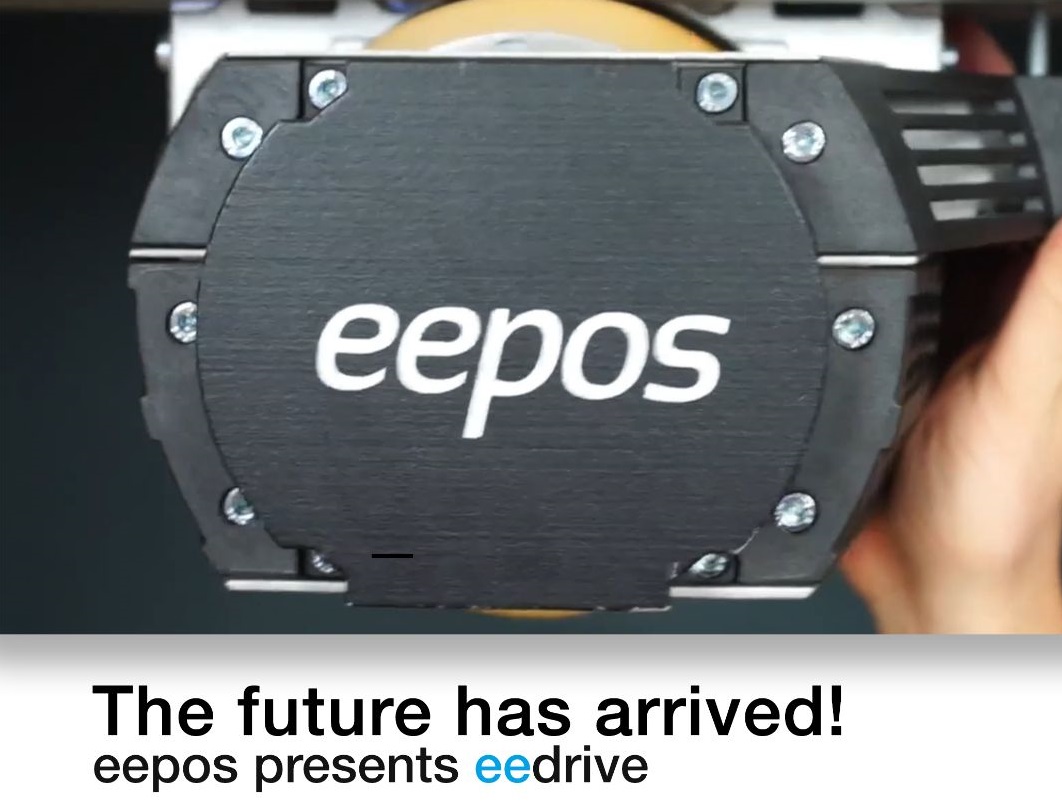

eepos smart eedrive

A compact, user friendly, smart eedrive for auto or manual transfer applications.

At a glance

  • The eedrive has a permanently excited synchronous motor with an integrated servo controller.
  • It is designed for speeds upto 94 m/min and pulls loads up to 1000kg.
  • The major advantage of the eedrive is it's compact design.
  • The entire eedrive travels underneath the crane profile which avoids collisions with parts on the side of the profile.
  • The compact design is possible because it is a direct drive. This drive doesn't need a gearbox which leads to low self-locking.
  • The eedrive hence can be moved by hand without any hassle.

Control

With crane bottle

  • Two stage control
  • Freewheel of the drive at standstill possible
  • Via PLC

  • Stepless control: Speed or torque
  • Analog: -10 V to 10 V | 0 V to 10 V
  • Fieldbus: CANopen

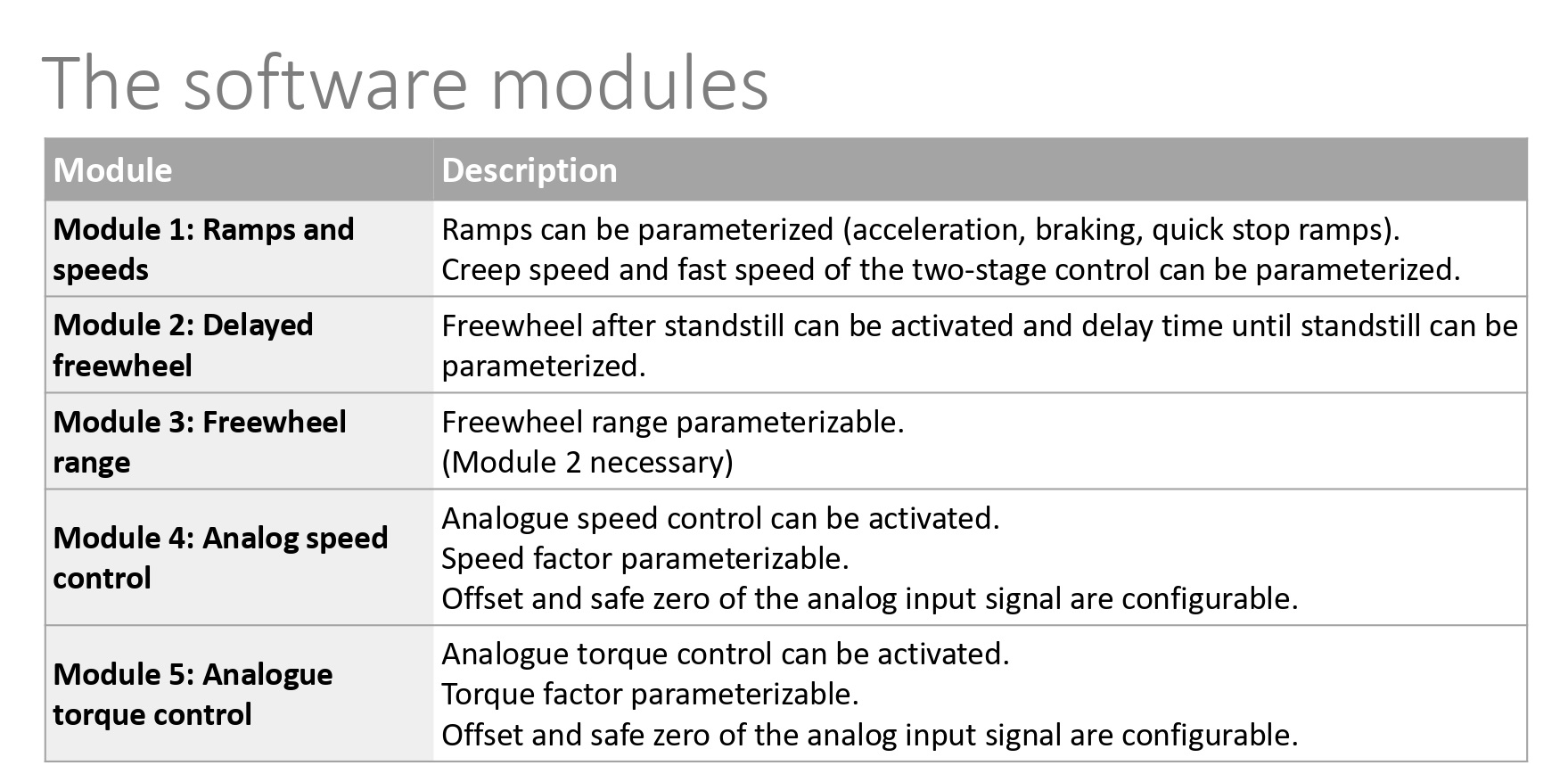

  • eepos parameterisation tool

    This software can be used by anyone to set parameters for the eedrive such as speeds, ramps, freewheeling, stepless analogue control, etc.

    Download here for free
